SPECIFICATIONS

EXPAND ALL COLLAPSE ALL

  • Engine

    ModelKomatsu SAAD95LE-5
    TypeWater-cooled, 4-cycle, direct injection
    AspirationVariable flow, turbocharged, Water-cooled
    Number of Cylinders4
    Piston Displacement3.26 ltr
    Horsepower, Gross - SAE J199572.1 kW
    Horsepower, Net - ISO 9249 / SAE J134968.4 kW
    Rated RPM2200
    Emissions certificationEPA Tier 3

  • Hydraulic System

    TypeHydrauMind System
    Number of selectable working modes5
    Main pump typeVariable displacement system
    Pump forBoom, arm, bucket, swing, and travel circuits
    Maximum flow241.5 ltr/min

  • Drives and Brakes

    Steering controlTwo levers with pedals
    Drive methodFully hydrostatic
    Maximum drawbar pull122.6 kN 12500 kgf
    Travel speeds2.9 / 5.5 km/h
    Service brakeHydraulic lock
    Parking brakeMechanical disc brake

  • Swing System

    Driven byHydrostatic
    Swing reductionPlanetary gear
    Swing circle lubricationGrease-bathed
    Service brakeHydraulic lock
    Swing lockMechanical Disc brake
    Swing speed11.0 rpm

  • Undercarriage

    Center frameX-frame leg
    Track frameBox-bathed
    Track typeSealed track
    Track adjusterHydraulic
    Number of shoes (each side)43
    Number of carrier rollers (each side)1
    Number of track rollers (each side)7
    Shoe size & type500 mm triple grouser

  • Coolant & Lubricant capacity

    Fuel tank247 ltr
    Coolant13.9 ltr
    Engine11.5 ltr
    Final drive, each side2.1 ltr
    Swing drive2.5 ltr
    Hydraulic tank90 ltr
    DEF tankNone

  • Weights

    Operating weight
    Without Blade12,920 - 13,060 kg
    With Blade14,060 - 14,200 kg

  • Dimensions (transport position)

    Length, overall (mm)7590
    Track length on ground (mm)2880
    Track gauge (mm)1990
    Overall track width (mm)2490
    Overall height (mm)2875
    Ground clearance (mm)400

  • Operation

    Boom size (m) & type4.6 standard
    Arm size (m) & type2.5 standard
    Arm crowd force - ISO (kgf)6880
    Bucket crowd force - ISO (kgf)9520
    Digging depth - maximum (mm)5520
    Digging reach - maximum (mm)8290
    Maximum reach @ ground level8170
    Swing radius (mm)2190

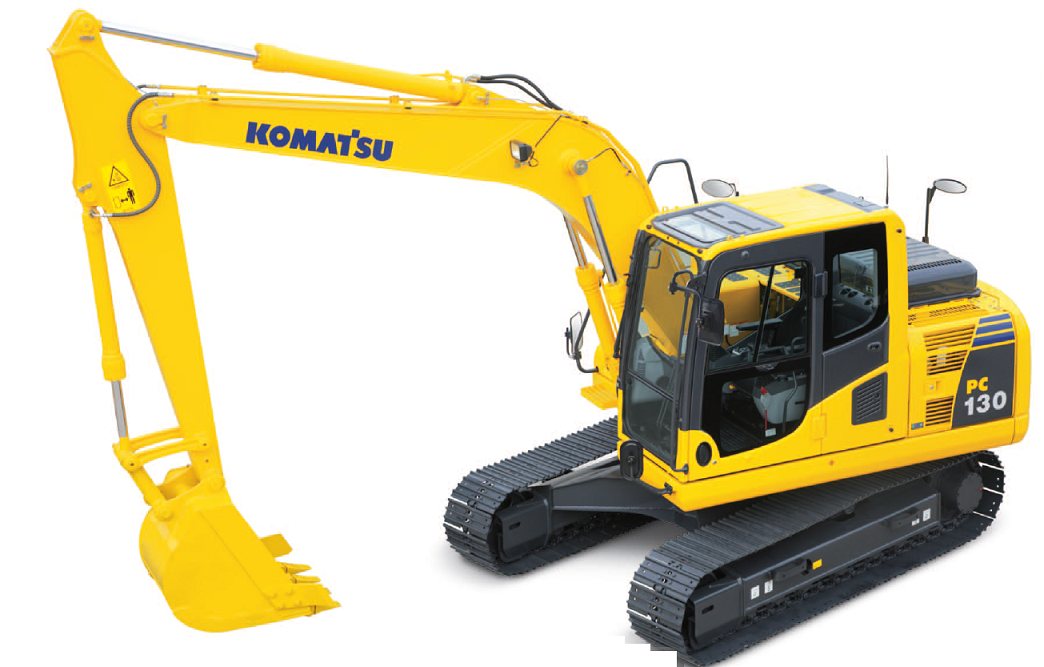

PC130-8 Excavators

This excavator makes an ideal workhorse for smaller building and construction sites where productivity and performance is required. The PC130-8 is also available with blade. As with all our construction excavators, key components are designed and manufactured by Komatsu to work together in an integrated package. And it comes standard with our Komtrax remote monitoring and location system, backed by our Australia-wide service and support network.

  • 68.4 kW / 92 HP
    ENGINE POWER
  • 13,060 kg
    OPERATING WEIGHT
  • 0.53 m³
    BUCKET CAPACITY

PC130-8 Excavators

Current Offers

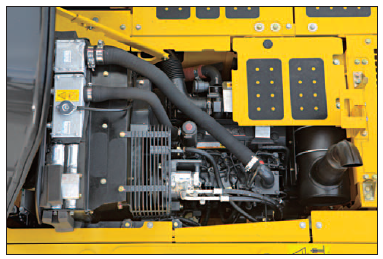

Low operation noise

Enables low noise operation using the low-noise engine and methods to cut noise at source.
Electronically controlled common rail type engine
• Multi-staged injection
• Low noise design
• Optimal arrangement of sound absorbing materials
• Partition between the cab and engine room

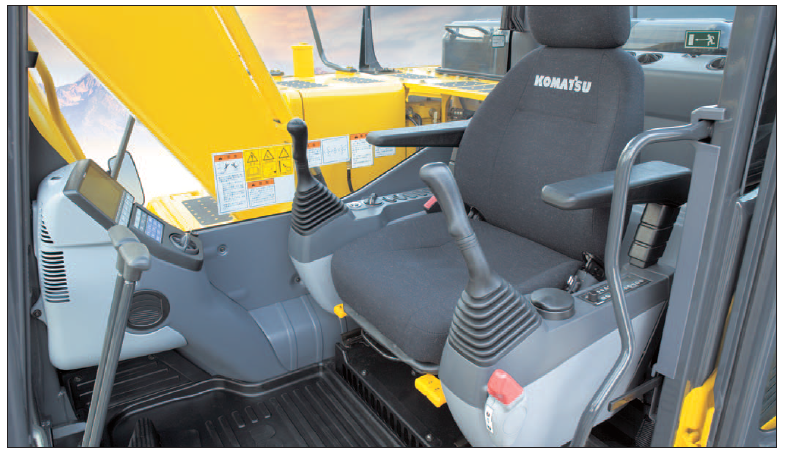

Wide Newly-designed Cab

Newly-designed wide spacious cab includes seat with reclining backrest. The seat height and longitudinal inclination are easily adjusted using a pull up lever. You can set the appropriate
operational posture of armrest together with the console. Reclining the seat further enables you to place it into the fully flat state with the headrest attached.

Easy Maintenance

• Long replacement interval of engine oil, engine oil filter, and hydraulic filter
• Remote mounted engine oil filter, engine main fuel filter and fuel drain valve for easy access
• Equipped with the fuel pre-filter as standard (with water separator)
• Side-by-side cooling concept enables individual cooling modules to be serviced.
• Equipped with the EMMS monitoring system
