  • Operating capacities, weights and dimensions

      Standard lift High lift
    Bucket capacity* 22.94 m3 21.41 m3
    Operating payload 40 823 kg 38 102 kg
    Static tipping loads
    Straight 108 776 kg 100 068 kg
    Full 45° turn 98 849 kg 90 936 kg
    Breakout force 978 kN 1 004 kN
    Operating weight 194 228 kg 196 496 kg

    * Standard rock bucket based on a material density of 1 780 kg/m3 (3 000 lbs./yd3)

  • Working ranges

    Engine1 249 kW
    KESS**820 kW
    Payload
    Standard40 823 kg
    High lift38 102 kg
    Bucket capacity sized to material density
    Truck match181 - 236 tonne
  • Power module

    Diesel power options
    MTU Detroit diesel engineTier one
    Model12V Series 4000 12 cylinders
    Type4-cycle turbocharged
    Rated power1,193 kW (1,600 HP) @ 1,800 rpm
  • Propulsion system

    SR Hybrid Drive switched reluctance (SR) technology propulsion system

    • Digital microprocessor controlled traction drive
    • SR Hybrid Drive advantages include:
      • No commutator, brushes or rotor windings on SR motors or generator
      • SR KESS - Kinetic Energy Storage System
      • Parts commonality - power conversion modules identical for motor and generator

    Travel speed

    Forward and reverse 0 - 19.31 kph (0 - 12 mph)

    Generator

    • G100 SR generator

    Traction motors

    • B40A SR motor
    • SR all wheel drive (independent SR motor for each wheel)

    Planetary gearing

    Model 51A2

    • In-line gear train mounted within the rim of the tire, transmitting power from the traction motor through the tire/rim assembly.
    • A four-stage planetary drive unit in each position
    • Total reduction 140.8:1
  • Control system - LINCS II

    LINCS II

    Microprocessor based modular design Vehicle Control Unit (VCU) with monitoring and diagnostics including integrated data logging and storage.

    LINCS II uses a dash mounted full color, touch screen display as the operator interface. Out-of-range conditions will cause an audible alarm along with a message screen that is color coded to indicate severity.

    In addition, the touch-screen display provides repair technicians with operational data and fault messages.

    LINCS II load weigh

    Displays real-time load per pass, per truck and total loads

    • Memory capable of retaining months of production information
    • Capable of interfacing with radio dispatch systems for real-time monitoring
  • Hydraulic system

    HPD drive box

    • Pressurized, cooled, and filtered lubrication
    • Ratio 1:1

    Pumps

    (Maximum flow rate at 1 800 rpm)

    Main Piston (4) 1,404 L/min
    Steering Piston 342 L/min
    Fan/blower drive Tandem piston 171/171 L/min
    Accessory Piston 81 L/min
    Cooling system
    Circulating pump
    Vane 409 L/min

    Valves

    Main Three (3) 700 L/min
      Pump pressure 27 980 kPa
    Steering One (1) 341 L/min
      Pump pressure 23 443 kPa



    Cylinders

    Double-acting, single-stage (diameter and stroke), (standard and high fit)

    Hoist 343 x 1892 mm
    Bucket 254 x 1054 mm
    Steering 190 x 762 mm
  • Steering and hoisting system

    Steering

    Steering function is controlled by a single joystick. Constant engine rpm assures full hydraulic steering response.

    Articulation angle 40°
    Turning radius
    Standard lift 13.50 m
    High lift 13.76 m

    Hoist and bucket control

    Hoist and bucket control functions are incorporated into a single joystick control. The proportional electro-hydraulic controlled hoist and bucket system is independent of the steering system.

    Standard/high lift cycle times:
    Hoist 11.8 s
    Dump 3.0 s
    Float 5.0 s
  • Braking system

    Primary brake system

    Electric dynamic braking system is controlled from the accelerator pedal and can bring the loader to a full stop without application of mechanical brakes.

    Secondary brake system

    Air modulated traction motor speed disc brakes

    • Single disc and caliper on each traction motor (4)
    • Emergency fail safe brakes are spring applied in the event of air pressure loss

    Parking brake system

    Spring applied, air release traction motor speed disc brakes

  • Air filtration

    Primary

    • Operator cab air supply
      • Self-cleaning replaceable filter technology
      • Minimum Efficiency Reporting Value (MERV) 15 efficiency level per ASHRAE 52.2-2012
      • 5 000 hour filter life achievable
      • Low maintenance

    Secondary

    Dual safety filters for engine

  • Fluid capacities

    Fuel 3 501 L
    Hydraulic 1 419 L
    SR converter cooling system117 L
    Engine cooling system382 L
    Crankcase (includes filters)
    Detroit 330 L
    Cummins216 L
    Gearbox27 L
    Planetaries (each)136 L
  • Structural

    Frames are fabricated from high strength, low-alloy steel with excellent weld characteristics and extreme low temperature properties. The front axle is an integral, fixed part of the front frame. The rear axle center oscillates 11 degrees.

    Unique forged ball and socket joints are utilized in multiple pivot locations (lift arms, rear axle, frame articulation, hoist cylinders). These joints are superior in absorbing and distributing multi-directional stresses. Features easily replaceable brass liners for long life and easy maintenance.

    High strength castings are used in key areas of fabricated structures to reduce stress and improve structural life.

  • Tires

    Tires50/80-57 L-4
    Rims36 x 57 with 6 in flange
  • Buckets

    Rock and coal bucket configurations available.

    Buckets sized to material density.

    Standard, ISO-rated capacity40 823 kg
    High lift, ISO-rated capacity38 102 kg

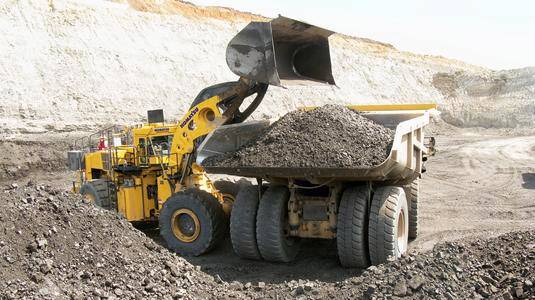

WE1350 Wheel Loaders

When your goal is maximising your mining operation’s productivity, it’s all about cost per tonne. The versatile WE1350 is engineered to improve both sides of the equation: low cycle times and utmost reliability to boost your tonnage, multiple features designed to minimise your fuel and maintenance costs.

  • 1,249 kW / 1,676 HP
    ENGINE POWER
  • 194,228 kg
    OPERATING WEIGHT
  • 22.94 m³
    BUCKET CAPACITY

Powering progress: SR technology

Komatsu’s ties to SR Technology date back to the beginning. SR is the future, but it’s been part of Komatsu’s for a long time. Everything we did has been built on decades of work and experience. Not only can we offer the benefits others are beginning to scratch the surface on, but we know how to apply this technology and optimise every bit of reliability, fuel efficiency and performance.

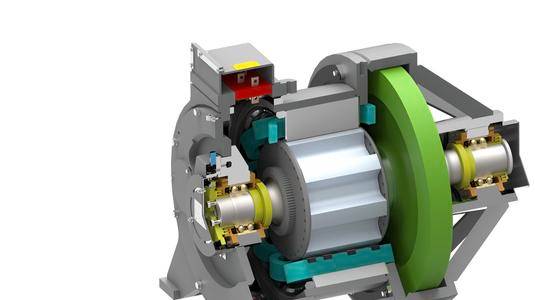

Kinetic Energy Storage System (KESS)

During propulsion, diesel energy is converted to electricity. Energy flows from the motors and is stored in the KESS unit. During acceleration, the diesel engine and the stored KESS energy generate an additional 550 HPin underground LHDs and 1,100 HPin surface wheel loaders.

MineCare Maintenance Management System

The MineCare Maintenance Management System combines the benefits of real-time remote equipment health monitoring with cloud computing technology and advanced analytics capabilities. The MineCare System promotes the advanced detection of issues before they occur, thus helping to reduce unplanned maintenance events, promoting increased uptime and utilisation and reduced maintenance costs and equipment degradation.
