SPECIFICATIONS

EXPAND ALL COLLAPSE ALL

  • Engine

    ModelKomatsu SAA6D170E-7
    TypeFour-cycle, water-cooled, direct injection
    AspirationTurbo-charged, after-cooled, cooled EGR
    Number of cylinders6
    Bore x stroke170 mm x 170 mm
    Displacement23.15 ltr
    Horsepower, Gross (Forward) - SAE J1995474 kW / 636 HP
    Horsepower, Net (Forward) - ISO 9249 / SAE J1349455 kW / 610 HP
    Horsepower, Gross (Reverse) - SAE J1995578 kW / 775 HP
    Horsepower, Net (Reverse) - ISO 9249 / SAE J1349558 kW / 748 HP
    Rated RPM1800
    Fan drive methodHydraulic

  • Coolant & Lubricant Capacity

    Fuel tank1200 ltr
    Coolant145 ltr
    Engine86 ltr
    Torque converter, transmission, bevel gear, and steering system150 ltr
    Final drive (each side)65 ltr

  • Final Drive

    Double-reduction final drive of spur and planetary gear sets to increase tractive effort and reduce gear tooth stresses for long final drive life. Segmented sprocket teeth are bolt-on for easy replacement.

  • Hydraulic System

    Hydraulic Control Unit:
    Closed-center load sensing system (CLSS) designed for precise and responsive control, and for effici
    All spool control valves externally mounted beside the hydraulic tank. Variable piston pump with cap
    Relief valve setting . . . for implement29.8 MPa 304 kg/cm²
    Control Valves:
    Spool control valves for Semi-U tilt dozer and Full-U tilt dozer.
    Blade liftRaise, hold, lower, and float
    Blade tiltRight, hold, and left
    Additional control valve required for variable digging angle multi-shank ripper and giant ripper.
    Ripper liftRaise, hold, and lower
    Ripper tiltIncrease, hold, and decrease
    Hydraulic Cylinders:
    TypeDouble-acting, piston
    Number of blade lift cylinders2
    Blade lift cylinder bore140 mm
    Number of blade tilt cylinders2
    Blade tilt cylinder bore200 mm
    Number of ripper lift cylinders2
    Ripper lift cylinder bore200 mm
    Number of ripper tilt cylinders2
    Ripper tilt cylinder bore180 mm
    Hydraulic Oil Capacity (Refill):
    Semi-U dozer or U dozer130 ltr
    Ripper Equipment (Additional Volume):
    Giant ripper (variable)45 ltr
    Multi-shank ripper (variable)45 ltr

  • Operating Weight

    Tractor weight Including rated capacity of lubricant, coolant, full fuel tank, operator, and standard equipment. 56340 kg
    Operating weight Including Semi-U tilt dozer, giant ripper, cab, ROPS, operator, standard equipment, rated capacity of lubricant, coolant, and full fuel tank. 72840 kg
    Ground pressure 147 kPa / 1.50 kg/cm²

  • Steering System

    Finger Command Control System (FCCS), paddle controlled, wet multiple-disc steering clutches are spring-loaded and hydraulically released. Wet multiple-disc, pedal/lever controlled steering brakes are spring-actuated hydraulically released and require no adjustment. Steering clutches and brakes are interconnected for easy, responsive steering.

    Minimum turning radius4.2 m

  • Torqflow Transmission

    Komatsu TORQFLOW transmission consists of a water-cooled, 3-element, 1-stage, 1-phase torque converter with lockup clutch and a planetary gear, multiple-disc clutch transmission which is hydraulically actuated and force-lubricated for optimum heat dissipation. Gearshift lock lever and neutral safety switch help prevent accidental starts.

    Gear Forward Reverse
    1st 3.5 km/h 4.6 km/h
    2nd 6.8 km/h 8.9 km/h
    3rd L 8.0 km/h 9.7 km/h
    3rd 11.8 km/h 15.8 km/h

  • Undercarriage

    Suspension Oscillating equalizer bar with shoulder pad and pivot shaft
    Track roller frame Cylindrical, high-tensile-strength steel construction
    Rollers and idlers Lubricated track rollers
    K-Bogie undercarriage Lubricated track rollers are resiliently mounted to the track frame with a bogie suspension system whose oscillating motion is cushioned by rubber pads.
    Extreme service track shoes Lubricated tracks. Unique seals prevent entry of foreign abrasives into pin to bushing clearances to provide extended service life. Track tension is easily adjusted with grease gun.
    Number of shoes (each side) 41
    Grouser Height:
    Single grouser 93 mm
    Shoe width (standard) 610 mm
    Ground contact area 48560 cm2
    Ground pressure (tractor) 113 kPa / 1.16 kg/cm²
    Number of track rollers 8
    Number of carrier rollers 2
    Extreme service shoes: Ground contact area: Ground pressure:

    710 mm

    Additional weight - 680 kg

    		 56520 cm² 97.6 kPa / 1.00 kg/cm²

    810 mm

    Additional weight - 1360 kg

    		 64480 cm² 95.6 kPa / 0.87 kg/cm²

  • Attachment Options

    Blade:



    Overall Length with Dozer

    Blade Capacity (ISO 9246)

    Blade Length x Height with Spill Guard Height

    Maximum Lift above Ground

    Maximum Drop below Ground

    Maximum Tilt Adjustment

    Weight

    Ground Pressure*

    Semi-U Dozer

    7855 mm

    18.5 m3

    4775 mm x 2525 mm

    1690 mm

    734 mm

    950 mm

    10710 kg

    45 kg

    147 kPa 1.50 kg/cm2

    Strengthened Semi-U Dozer

    7855 mm

    18.5 m3

    4775 mm x 2525 mm

    1690 mm

    734 mm

    950 mm

    11280 kg

    45 kg

    148 kPa 1.51 kg/cm2

    Strengthened U Dozer

    8215 mm

    22.0 m3

    5215 mm x 2525 mm

    1690 mm

    734 mm

    1040 mm

    12330 kg

    45 kg

    150 kPa 1.53 kg/cm2

    Dual Tilt Semi-U Dozer

    7855 mm

    18.5 m3

    4775 mm x 2525 mm

    1690 mm

    734 mm

    1170 mm

    10870 kg

    50 kg

    147 kPa 1.50 kg/cm2

    Strengthened Dual Tilt Semi-U Dozer

    7855 mm

    18.5 m3

    4775 mm x 2525 mm

    1690 mm

    734 mm

    1170 mm

    11440 kg

    50 kg

    149 kPa 1.52 kg/cm2

    Strengthened Dual Tilt U Dozer with Spill Guard

    8215 mm

    22.0 m3

    5215 mm x 2525 mm

    1690 mm

    734 mm

    1280 mm

    12490 kg

    50 kg

    151 kPa 1.54 kg/cm2

    *Ground pressure shows tractor with cab, ROPS (ISO 3471), variable giant ripper, standard equipment and applicable blade



    Ripper:

    Multi-shank ripper

    Hydraulically controlled parallelogram ripper with three shanks. Ripping angle is steplessly adjustable.



    Weight (Including hydraulic control unit and oil):

    6430 kg

    Beam length:

    2910 mm

    Maximum lift above ground:

    1155 mm

    Maximum digging depth:

    1140 mm





    Variable giant ripper

    Variable, parallelogram single-shank ripper ideal for ripping up tough material. Ripping angle is variable. Ripping depth is adjustable in three stages by a hydraulically controlled pin puller.



    Weight (Including hydraulic control unit and oil):

    5210 kg

    Beam length:

    1600 mm

    Maximum lift above ground:

    1120 mm

    Maximum digging depth:

    1485 mm

D375A-8 Dozers

Powered by a new technology Komatsu engine, the D375A-8 bulldozer sets the industry standard in terms of operator comfort and control, while delivering higher production and lower operating costs for mining and heavy construction applications. As with all our dozers, key components are designed and manufactured by Komatsu to work together in an integrated package. And the dozer comes standard with our Komtrax Plus remote monitoring and location system, backed by our Australia-wide service and support network.

For new and used dozers for sale request a quote below.

  • 455 kW / 610 HP
    ENGINE POWER
  • 72,900 kg
    OPERATING WEIGHT
  • 22 m³
    BLADE CAPACITY

D375A-8 Dozers

Current Offers

Heavy-duty aftertreatment system

KDPF captures more than 90% of Particulate Matter (PM). Special oxidation catalyst and extra fuel injection in the exhaust stream can decompose accumulated soot in the KDPF filter by either active or passive regeneration. This system does not require any additional operator's action or interrupt normal operation.

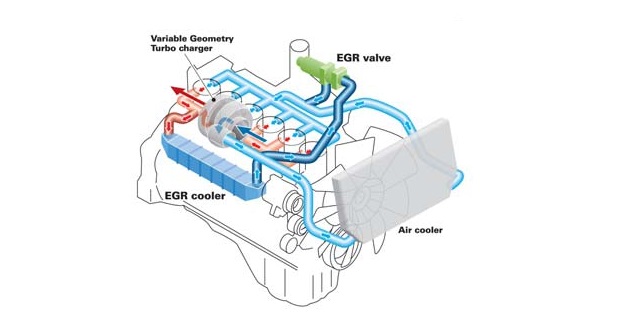

Heavy-duty cooled Exhaust Gas Recirculation (EGR) system

The system recirculates a portion of exhaust gas into the air intake and lowers combustion temperatures, thereby reducing NOx emissions. While EGR gas flow isincreased, by incorporating a high-efficiency and compactly designed cooling system, the system achieves a dynamic reduction of NOx, while helping to reduce fuel consumption.
