SPECIFICATIONS

EXPAND ALL COLLAPSE ALL

  • Engine

    ModelKomatsu SAAD107E-1
    Type4-cycle, water-cooled, overhead valve, turbocharged diesel engine
    AspirationTurbocharged, air to air aftercooled
    No. Cylinders6
    Bore107 mm
    Stroke124 mm
    Piston Displacement6.69 ltr
    Horsepower, Gross149 kW / 200 HP
    Horsepower, Net140 kW / 187 HP
    Rated RPM2050
    Emissions certifiedEPA Tier 3

  • Hydraulic System

    TypeHydrauMind system
    Main pump typeVariable-displacement piston pumps
    Maximum flow2 x 230 ltr/min
    Maximum pressure380 kg/cm2
    Maximum travel speed3 km/h
    System oil flow
    Travel2 x 160 ltr/min
    Crusher230 ltr/min
    Feeder58 ltr/min
    Conveyor38 ltr/min
    Option28 ltr/min

  • Operating weight

    Operating weight34,000 kg

  • Undercarriage

    Seal of trackSealed track
    Track adjusterHydraulic
    Number of shoes (each side)45
    Number of carrier rollers (each side)2
    Number of track rollers (each side)5

  • Crusher

    JawKomatsu KCJ4222
    Inlet size1065 mm x 550 mm
    Discharge setting (O.S.S)50 mm to 150 mm
    Rotating speed (variable)170 - 330 rpm

  • Grizzly feeder

    FrequencyMaximum 1100 cpm
    Size1000 mm x 3070 mm
    Amplitude (not loaded, all amplitude)8.0 mm
    Drive typeDirect drive with hydraulic motor

  • Coolant & Lubricant capacity

    Fuel tank400 ltr
    Radiator28 ltr
    Engine26 ltr
    Final drive, each side4.5 ltr
    Hydraulic system209 ltr

BR380JG-1E0 Crushers

With a throughput range of 50-240 tonnes/hour (depending on material and sizings) our BR380JG-1EO features the same innovative technology as used on our market leading excavators and loaders. It also incorporates a unique hydraulic crusher protection system, reducing downtime and operating costs. As with all our products, key components are designed and manufactured by Komatsu to work together in an integrated package. And it comes standard with our Komtrax remote monitoring and location system, backed by our Australia-wide service and support network.

  • 140 kW / 187 HP
    ENGINE POWER
  • 34,000 kg
    OPERATING WEIGHT
  • 1065 x 550 mm
    JAW SIZE

BR380JG-1E0 Crushers

Current Offers

Eco-Friendly Engine

Equipped with the SAA6D107E-1 turbocharged after-cooled diesel engine, this new mobile crusher has a nominal output as high as 140 kW / 187 HP. The Tier 3 emissions certified "ecot3" engine greatly reduces NOx emissions with no reduction in performance

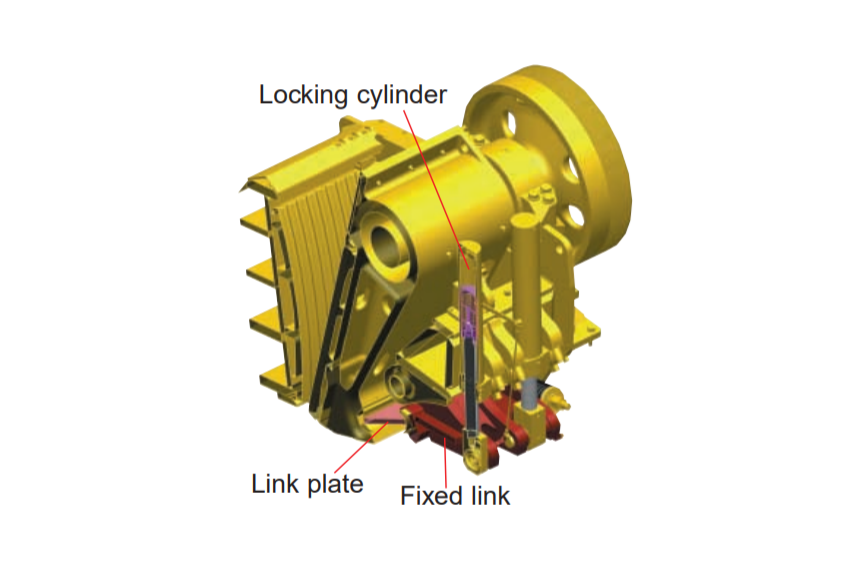

High Performance Jaw

The KCJ4222 large-capacity jaw crusher guarantees maximum crushing capacity in this class along with ease of maintenance. In addition, Komatsu's locking cylinder mechanism allows you to change the discharge clearance with a simple one-touch adjustment and also facilitates the removal of clogged foreign material from the discharge side.

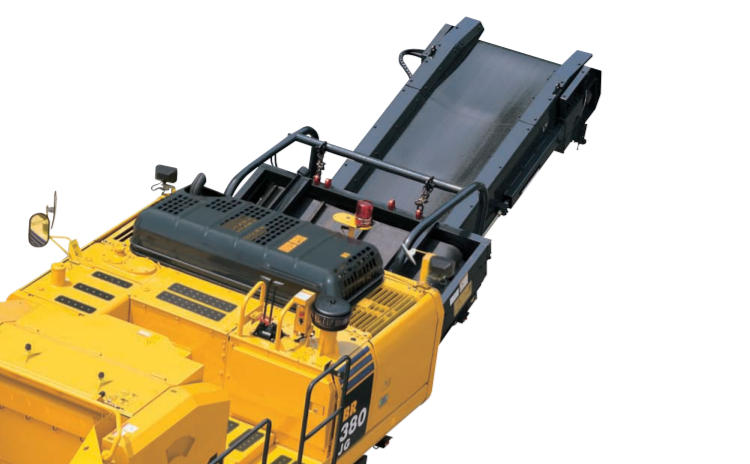

High-Speed, Large-Capacity Conveyor Belt

The high discharge height of 2800 mm makes it easy to configure a system with stock pile conveyor and screens. With its width of 1050 mm and a belt speed of 120 m/min, the belt conveyor has a high volume capacity. In addition, the conveyor reverse mode is provided to facilitate the removal of jammed foreign material.
