• Engine

    Model Komatsu SAA4D104E-1
    Horsepower, Net - EEC 80/1269 (kW) 74
    Engine Displacement (litre) 4.485
    Number of cylinders 4
  • Operation Weight

    Operating weight - (kg) Standard: 8070
  • Backhoe

    S/shift or C/mount Side-shift
    Dig depth (mm) 6465
    Reach @ ground level (mm) 7175
    Load height (mm) 5148
    Bucket widths, min-max (mm) 300-1200
    Bucket breakout force (kgf) 6100
    Arm breakout force (kgf) 4000
    Slew system Twin ram
    Related Information Komatsu Genuine Attachments including a dynamic cast quick hitch and integrated bucket solutions
  • Loader

    Bucket capacity (m3) 1.0
    Dump height (mm) 2720
    Bucket width (mm) 2320
    Bucket breakout force (kgf) 6500
  • Hydraulic System

    Pump type Variable displacement piston
    Pump flow (litre/min) 165
    Relief valve pressure (bar) 250
    ​Related Information ​Efficient and powerful operation is obtained from the Syncro System CLSS system
  • Transmission

    Transmission type Full Power Shift
    Drive 2WD / 4WD
    Number of speeds, Fwd / Rev 4 / 4
    Maximum speed, Fwd / Rev (km/h) 40.0
    Ride Control (Standard/Optional/NA) Standard
  • Dimensions

    Travel length (mm) 5895
    Travel height (mm) 3780
    Width (mm) 2320
  • Service Information

    Fuel tank (litre) 150
  • Communications System

    KOMTRAX Satellite tracking Yes
  • Standard Fitment

    ENGINE & RELATED ITEMS - Komatsu SAA4D104E-1 engine. - Air cleaner, dual element with precleaner. - Full compliance with EU Stage IIIA and EPA Tier III exhaust emission regulations. - Side by side cooling cores, (engine, transmission, hydraulic, intercooler).
    ELECTRICAL SYSTEM - Alternator, 12 Volt, 120 Ampere. - Battery, standard, 1 x 12 Volt, 155 Ah. - Starter motor, 12 Volt, 3.0 kW.
    POWERTRAIN - Electronically controlled, four wheel drive, Full Power Shift transmission, 4 speed. - Heavy duty axles. - Oil immersed disc brakes, individual rear or total integral braking.
    TYRES - Front - 12.5/80 R18 - 10 PR. - Rear - 16.9 x 28 - 12 PR.

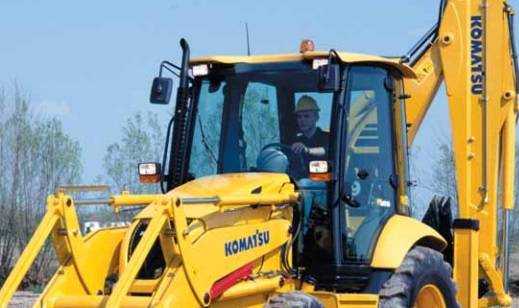

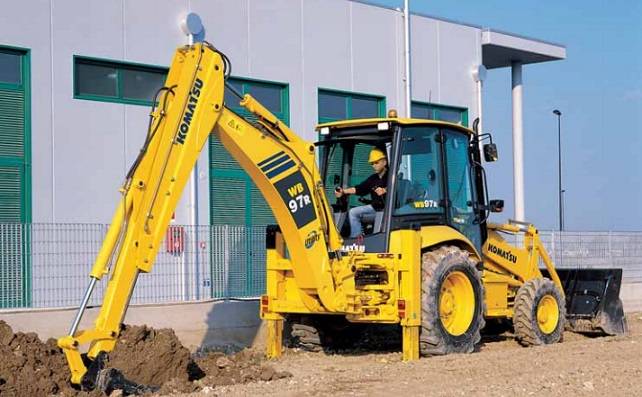

WB97R-5 Backhoes

With a backhoe dig depth to 6.8 m with extended dipper and a 1.03 m3 loader bucket capacity, our WB97R-5 is a productive, versatile machine featuring the same advanced closed-centre hydraulic system as our market-leading excavators. As with all utility-sized machines, key components are designed and manufactured by Komatsu to work together in an integrated package. And it comes standard with our Komtrax remote monitoring and location system, backed by our Australia-wide service and support network.

  • 74 kW / 99 HP
  • 6,080 mm
  • 9,000 kg

Current Offers

Premium Performance

  • PPC servo-controls standard for the front
  • loader and the backhoe
  • “Full Power Shift” transmission
  • CLSS (Closed Load Sensing System)
  • Variable fl ow piston pump
  • “Power” and “Economy” working modes

Excellent Visibility

  • Wide round glass surfaces
  • Sloped and narrow engine bonnet
  • Upper front window for full visibility of the front bucket
  • Total control of the surrounding area

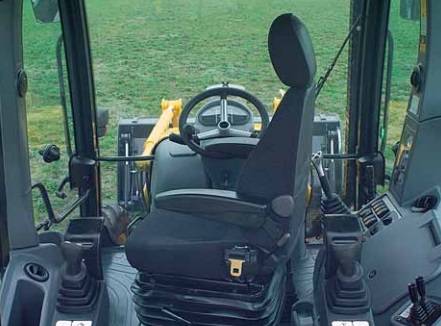

New Seat Range

The air suspended Deluxe seat or the more traditional mechanical suspended seat both guarantee the best interface between the machine and the operator. The air suspended seat also offers adjustable armrests, headrests and lumbar regulation as standard.
