HM400-5 Dump Trucks

SPECIFICATIONS

Engine

Model	Komatsu SAA6D140E-7
Type	Four-cycle, water-cooled, direct injection
Aspiration	Turbo-charged, after-cooled, cooled EGR
Number of cylinders	6
Bore x stroke	140 mm x 165 mm
Displacement	15.24 ltr
Horsepower, Gross - SAE J1995	353 kW / 473 HP
Horsepower, Net - ISO 9249 / SAE J1349	348 kW / 466 HP
Rated RPM	2000
Fan drive method	Hydraulic
Emissions certification	EPA Tier 4 Final

Axles

Final drive type Planetary gear
Ratios:
Differential 3.727
Planetary 4.941

Body

Capacity, struck	18.2 m3
Capacity, heaped (2:1 SAE)	24 m3
Payload	40000 kg
Target area (inside length x width)	5667 mm x 3194 mm
Heating	Exhaust heating (option)
Material	130 kg/mm2 high tensile strength steel
Material thickness:
Bottom	16 mm
Front	8 mm
Sides	12 mm

Brakes

Service brakes	Full-hydraulic control, oil-cooled multiple-disc type on front and centre axles
Standard	ISO3450
Parking brake	Spring applied, caliper disc type
Retarder	Front and centre axle brakes act as retarder

Cab

Standard ISO3449 (FOPS) ISO3471 (ROPS)
Hydraulic System

Hoist cylinder Twin, telescopic type
Relief pressure 28.4 MPa 290 kg/cm2
Hoist time 12.0 sec
Main Frame

Type Articulated, box-sectioned construction on front and rear Connected by strong torque tubes

Service Refill Capacities

Fuel tank	525 ltr
DEF tank	34.0 ltr
Engine oil	50 ltr
Torque converter, transmission and retarder cooling	125 ltr
Differentials (total)	108 ltr
Final drives (total)	32 ltr
Hydraulic system	167 ltr
Suspension (total)	21.4 ltr

Steering System

Type	Articulated type, fully hydraulic power steering with two double-acting cylinders
Supplementary steering	Automatically actuated, electrically powered
Standard	ISO5010 SAE J1511
Minimum turning radius, wall to wall	8.8 m
Articulation angle	45° each direction

Suspension System

Front Hydro-pneumatic suspension
Rear Combined hydro-pneumatic and rubber suspension system

Transmission

Torque converter	3-elements, 1-stage, 2-phase
Transmission	Full-automatic, countershaft type
Speed range	6 speeds forward and 2 reverse
Lockup clutch	Wet, single-disc clutch
Forward	Torque converter drive in 1st gear, direct drive in 1st lockup and all higher gears
Reverse	Torque converter drive and direct drive in all gear
Shift control	Electronic shift control with automatic clutch modulation in all gear
Maximum travel speed	55.9 km/h

Tyres

Standard tyre 29.5 R25

Weight (Approximate)

Empty and Gross Weight:

Empty weight	35005 kg
Gross vehicle weight	75135 kg

Weight Distribution:

Empty:
Front axle	56.9%
Centre axle	23.6%
Rear axle	19.5%
Loaded:
Front axle	30.4%
Centre axle	35.8%
Rear axle	33.8%

The HM400-5 is a 40-tonne capacity truck, powered by a new technology Komatsu engine and featuring our advanced truck transmission system, along with exclusive hydraulic braking and retarder systems for unrivalled traction, braking power and safety in all applications. As with all our trucks, key components are designed and manufactured by Komatsu to work together in an integrated package. And it comes standard with our Komtrax remote monitoring and location system, backed by our Australia-wide service and support network.

Tier 4 Engine KDPF Regeneration

348 kW / 466 HP
ENGINE POWER
75,135 kg
OPERATING WEIGHT
40,000 kg
PAYLOAD CAPACITY

HM400-5 Dump Trucks

Current Offers

Free KOWA kit giveaway

We’re giving the first 500 new customers the op...
FIND OUT MORE
Free delivery on myKomatsu

Get free standard delivery for all orders place...
FIND OUT MORE
Parts Plus Warranty

Ensure peace of mind when dealing with Komatsu
FIND OUT MORE

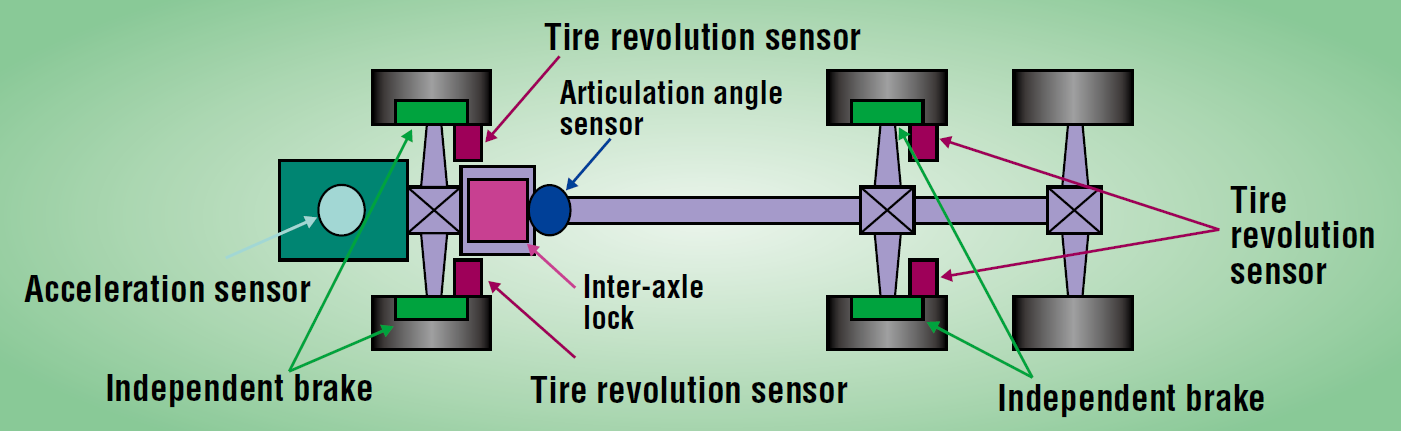

Komatsu Traction Control System

Komatsu Traction Control System (KTCS) automatically engages the inter axle lock and the KTCS braking to provide optimal traction in soft ground conditions

Selectable Economy and Power Working Modes

Selectable working modes for Economy and Power allows machine performance to be optimised based on demand and operating conditions

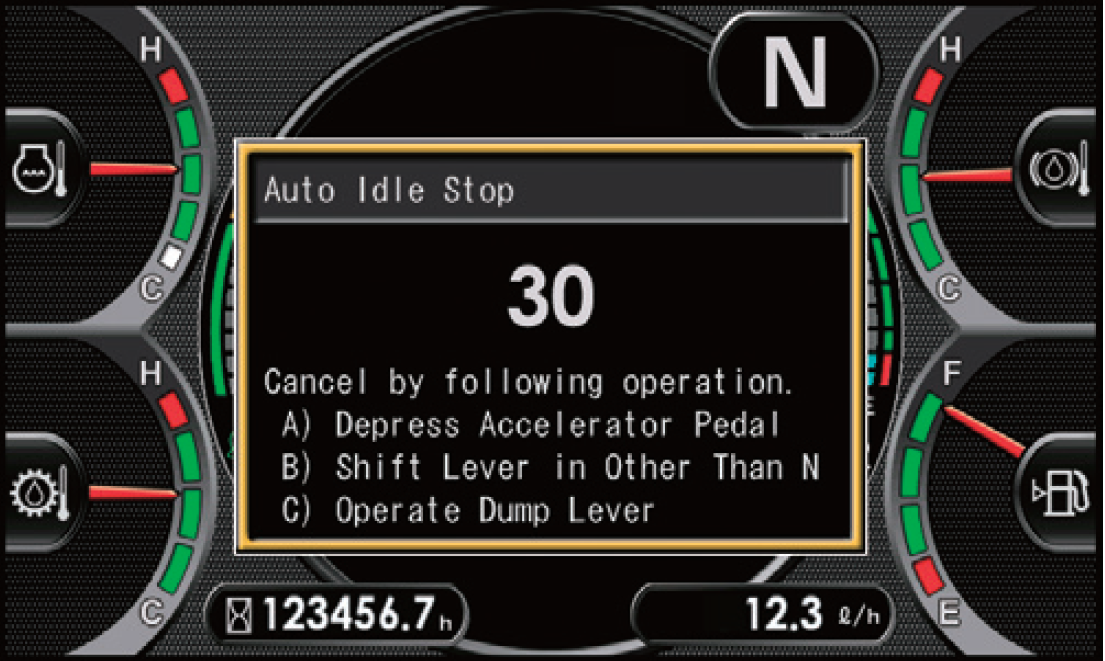

Auto Idle Shutdown

In order to reduce unwanted idle time, Komatsu machines feature Komatsu Auto Idle Shutdown. This function will shut the engine off and apply the parking brake and hydraulic lock after a preset idle time limit
