SPECIFICATIONS

EXPAND ALL COLLAPSE ALL

  • Engine

    ModelKomatsu SAA6D114E-6
    TypeWater-cooled, 4-cycle, direct injection
    AspirationTurbocharged, aftercooled
    Number of Cylinders6
    Bore x Stroke114 mm x 144.5 mm
    Piston Displacement8.85 ltr
    Horsepower, Gross - SAE J1995202 kW / 271 HP
    Horsepower, Net - ISO 9249 / SAE J1349192 kW / 257 HP
    Rated RPM1950
    Fan drive methodMechanical
    Emissions certificationEPA Tier 4

  • Hydraulic System

    TypeHydrauMind System
    Number of selectable working modes6
    Main pump typeVariable displacement piston type
    Pump forBoom, arm, bucket, swing, and travel circuits
    Maximum flow535 ltr/min
    Hydraulic Motors
    Travel2 x axial piston motor with parking brake
    Swing1 x axial piston motor with swing holding brake
    Relief Valve Setting
    Implement circuits380 kgf/cm3
    Travel circuit380 kgf/cm3
    Swing circuit285 kgf/cm3
    Pilot circuit33 kgf/cm3
    Hydraulic CylindersBore x Stroke x Rod diameter
    Boom2-140 mm x 1480 mm x 100 mm
    Arm1-160 mm x 1825 mm x 110 mm
    Bucket1-140 mm x 1285 mm x 100 mm

  • Drives and Brakes

    Steering controlTwo levers with pedals
    Drive methodFully hydrostatic
    Maximum drawbar pull290 kN 29570 kgf
    Gradeability70 %
    Travel speeds3.2 / 5.5 km/h
    Service brakeHydraulic lock
    Parking brakeMechanical disc brake

  • Swing System

    Driven byHydraulic motor
    Swing reductionPlanetary gear
    Swing circle lubricationGrease-bathed
    Service brakeHydraulic lock
    Swing lockMechanical disc brake
    Swing speed9.5 rpm

  • Undercarriage

    Center frameX-frame
    Track frameBox-section
    Track typeSealed track
    Track adjusterHydraulic
    Number of shoes (each side)48
    Number of carrier rollers (each side)2
    Number of track rollers (each side)8
    Shoe size & type600 mm triple grouser

  • Coolant & Lubricant capacity

    Fuel tank605 ltr
    Coolant37 ltr
    Engine35 ltr
    Final drive, each side9.0 ltr
    Swing drive13.7 ltr
    Hydraulic tank188 ltr
    DEF tank39 ltr

  • Weights

    Operating weight35,950 - 37,440 kg

  • Dimensions (transport position)

    Length, overall (mm)11145
    Track length on ground (mm)4030
    Track gauge (mm)2590
    Overall track width (mm)3190
    Overall height (mm)3285
    Ground clearance (mm)498

  • Operation

    Boom size (m) & type6.5 Heavy duty
    Arm size (m) & type3.2 Heavy duty
    Arm crowd force - ISO (kgf)17400
    Bucket crowd force - ISO (kgf)23200
    Digging depth - maximum (mm)7380
    Digging reach - maximum (mm)11100
    Maximum reach @ ground level10920
    Swing radius (mm)3445

PC360LC-11 Excavators

Now powered by a new technology Komatsu engine, the PC360LC-11 is designed to efficiently and productively carry out a wide range of earthmoving, excavation and rockbreaking duties. As with all our construction excavators, key components are designed and manufactured by Komatsu to work together in an integrated package. And it comes standard with our Komtrax remote monitoring and location system, backed by our Australia-wide service and support network.

Tier 4 Engine KDPF Regeneration
  • 192 kW / 257 HP
    ENGINE POWER
  • 36,490 kg
    OPERATING WEIGHT
  • 1.8 m³
    BUCKET CAPACITY

PC360LC-11 Excavators

Current Offers

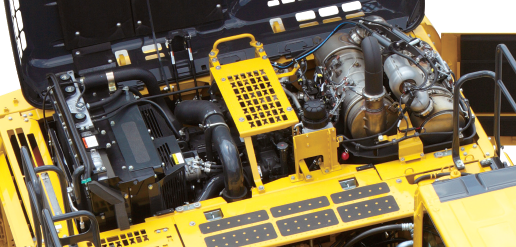

Fuel consumption reduced

The PC360LC-11's new tier 4 final engine along with enhancements in the hydraulic system considerably decreases fuel consumption. The fuel efficiency is reduced by 11% compared to the previous models.

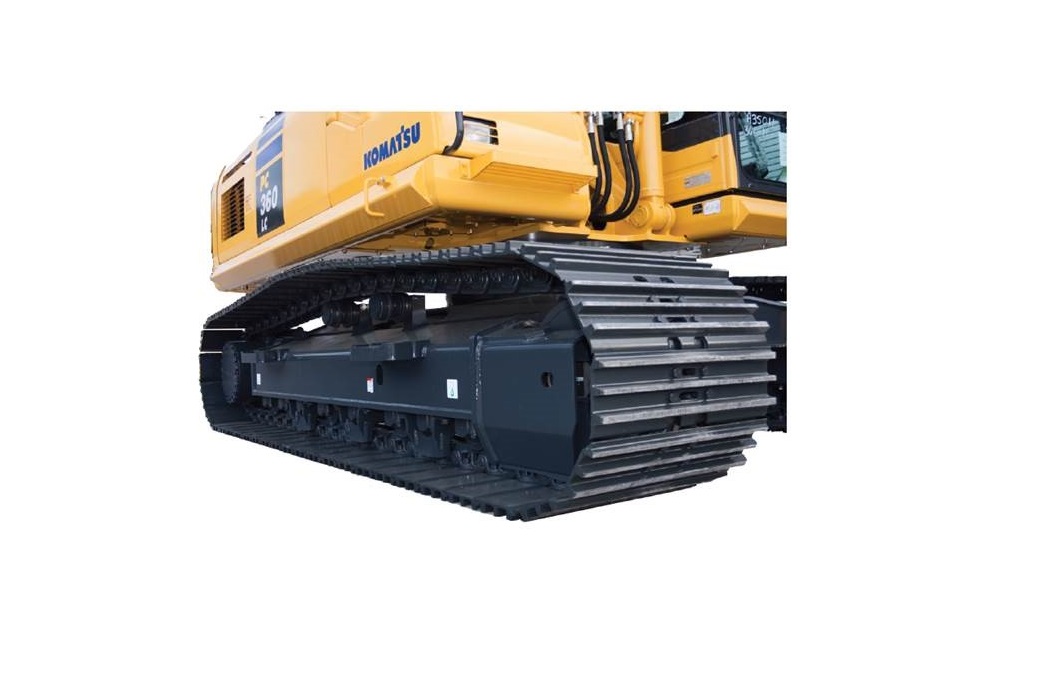

Increased drawbar pull

New travel motor and final drive design increases drawbar pull by 10% and provides improved steering and maneuverability in wet and muddy conditions

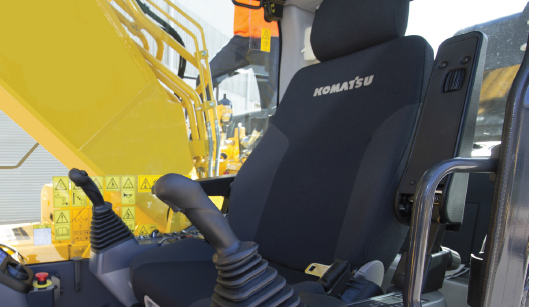

Comfortable Working Space

The wide spacious cab includes a heated air suspension seat with reclining backrest. The seat height and position are easily adjusted using a pull-up lever. The armrest position is easily adjusted together with the console. Reclining the seat further enables it to be fully laid back with the headrest attached.
