Komatsu Excavators l 13t to 80t l PC490LCi-11 Excavators

SPECIFICATIONS

Engine

Model	Komatsu SAA6D125E-7
Type	Water-cooled, 4-cycle, direct injection
Aspiration	Turbocharged, aftercooled
Number of Cylinders	6
Bore x Stroke	125 mm x 150 mm
Piston Displacement	11.04 ltr
Horsepower, Gross - SAE J1995	270 kW / 362 HP
Horsepower, Net - ISO 9249 / SAE J1349	268 kW / 359 HP
Rated RPM	1900
Fan drive method	Hydraulic
Emissions certification	EPA Tier 4 Final

Hydraulic System

Arm	1-185 mm x 1820 mm x 120 mm
Boom	2-160 mm x 1570 mm x 110 mm
Bucket	1-160 mm x 1270 mm x 110 mm
Hydraulic Cylinders	Bore x Stroke x Rod diameter
Hydraulic Motors
Implement circuits	380 kgf/cm3
Main pump type	Variable displacement piston type
Maximum flow	780 ltr/min
Number of selectable working modes	6
Pilot circuit	33 kgf/cm3
Pump for	Boom, arm, bucket, swing, and travel circuits
Relief Valve Setting
Swing	1 x axial piston motor with swing holding brake
Swing circuit	285 kgf/cm3
Travel	2 x axial piston motor with parking brake
Travel circuit	380 kgf/cm3
Type	HydrauMind System
Type	HydrauMind System
Number of selectable working modes	6
Main pump type	Variable displacement piston type
Pump for	Boom, arm, bucket, swing, and travel circuits
Maximum flow	780 ltr/min
Hydraulic Motors
Travel	2 x axial piston motor with parking brake
Swing	1 x axial piston motor with swing holding brake
Relief Valve Setting
Implement circuits	380 kgf/cm3
Travel circuit	380 kgf/cm3
Swing circuit	285 kgf/cm3
Pilot circuit	33 kgf/cm3
Hydraulic Cylinders	Bore x Stroke x Rod diameter
Boom	2-160 mm x 1570 mm x 110 mm
Arm	1-185 mm x 1820 mm x 120 mm
Bucket	1-160 mm x 1270 mm x 110 mm

Drives and Brakes

Drive method	Fully hydrostatic
Gradeability	70 %
Maximum drawbar pull	329 kN 33510 kgf
Parking brake	Mechanical disc brake
Service brake	Hydraulic lock
Steering control	Two levers with pedals
Travel speeds	3.0 / 5.5 km/h
Steering control	Two levers with pedals
Drive method	Fully hydrostatic
Maximum drawbar pull	329 kN 33510 kgf
Gradeability	70 %
Travel speeds	3.0 / 5.5 km/h
Service brake	Hydraulic lock
Parking brake	Mechanical disc brake

Swing System

Driven by	Hydraulic motor
Service brake	Hydraulic lock
Swing circle lubrication	Grease-bathed
Swing lock	Mechanical disc brake
Swing reduction	Planetary gear
Swing speed	9.1 rpm
Driven by	Hydraulic motor
Swing reduction	Planetary gear
Swing circle lubrication	Grease-bathed
Service brake	Hydraulic lock
Swing lock	Mechanical disc brake
Swing speed	9.1 rpm

Undercarriage

Center frame	X-frame leg
Number of carrier rollers (each side)	2
Number of shoes (each side)	49
Number of track rollers (each side)	8
Shoe size & type	600 mm triple grouser
Track adjuster	Hydraulic
Track frame	Box-section
Track type	Sealed track
Center frame	X-frame leg
Track frame	Box-section
Track type	Sealed track
Track adjuster	Hydraulic
Number of shoes (each side)	49
Number of carrier rollers (each side)	2
Number of track rollers (each side)	8
Shoe size & type	600 mm triple grouser

Coolant & Lubricant capacity

Coolant	47 ltr
DEF tank	39
Engine	38 ltr
Final drive, each side	11.0 ltr
Fuel tank	650 ltr
Hydraulic tank	248 ltr
Swing drive	20 ltr
Fuel tank	650 ltr
Coolant	47 ltr
Engine	38 ltr
Final drive, each side	11.0 ltr
Swing drive	20 ltr
Hydraulic tank	248 ltr
DEF tank	39

Weights

Operating weight 47,890 - 49,680 kg
Operating weight 47,890 - 49,680 kg

Dimensions (transport position)

Ground clearance (mm)	568
Length, overall (mm)	11930
Overall height (mm)	3635
Overall track width (mm)	3340
Track gauge (mm)	2740
Track length on ground (mm)	4350
Length, overall (mm)	11930
Track length on ground (mm)	4350
Track gauge (mm)	2740
Overall track width (mm)	3340
Overall height (mm)	3635
Ground clearance (mm)	568

Operation

Arm crowd force - ISO (kgf)	21800
Arm size (m) & type	3.4 Heavy duty
Boom size (m) & type	7.0 Heavy duty
Bucket crowd force - ISO (kgf)	28000
Digging depth - maximum (mm)	7755
Digging reach - maximum (mm)	12030
Maximum reach @ ground level	11810
Swing radius (mm)	3645
Boom size (m) & type	7.0 Heavy duty
Arm size (m) & type	3.4 Heavy duty
Arm crowd force - ISO (kgf)	21800
Bucket crowd force - ISO (kgf)	28000
Digging depth - maximum (mm)	7755
Digging reach - maximum (mm)	12030
Maximum reach @ ground level	11810
Swing radius (mm)	3645

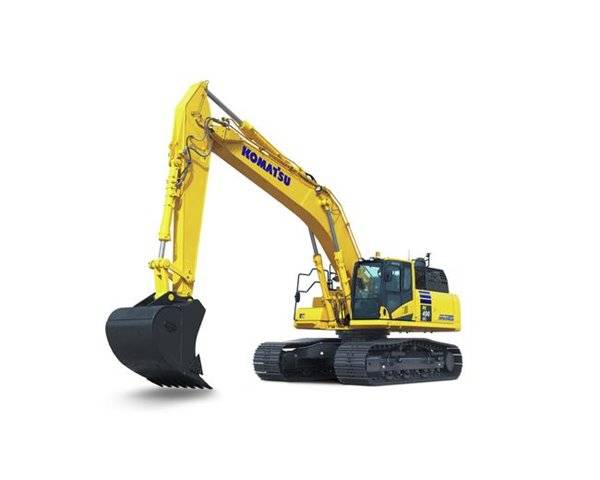

PC490LCi-11 Excavators

Excellent for mass excavating, trenching, or fine grading, our largest intelligent machine excavator can increase your productivity and efficiency without the worry of over-excavation from first to last pass, straight to grade. The PC490LCi-11 is designed for heavy construction, quarrying and demolition applications, delivering high productivity and lower owning and operating costs. Key components are designed and manufactured by Komatsu to work together in an integrated package. And it comes standard with our Komtrax remote monitoring and location system, backed by our Australia-wide service and support network.

Tier 4 Engine KDPF Regeneration

268 kW / 359 HP
ENGINE POWER
48,920 kg
OPERATING WEIGHT
2.7 m³
BUCKET CAPACITY

PC490LCi-11 Excavators

Current Offers

Win a $5,000 travel credit with myKomatsu

Order parts through myKomatsu this November and...
FIND OUT MORE
Merchandise

Shop online for Komatsu branded caps, jackets,...
FIND OUT MORE

Adjusts to the operator’s experience level

A fully integrated grade assist automatically traces the target surface to minimise over digging. A built-in facing angle compass ensures the machine is aligned with the target surface.

Auto stop control

To help eliminate potential damage during boom or bucket operation, the machine automatically stops when the bucket edge reaches the design surface.

Comfortable Working Space

The wide spacious cab includes a heated air suspension seat with reclining backrest. The seat height and position are easily adjusted using a pull-up lever. The armrest position is easily adjusted together with the console. Reclining the seat further enables it to be fully laid back with the headrest attached.
