SPECIFICATIONS

EXPAND ALL COLLAPSE ALL

  • Hydraulic System

    TypeHydrauMind System
    Main pump typeVariable displacement pump
    Pump forBoom, arm, bucket, swing, and travel circuits
    Maximum flow95.9 ltr/min
    Hydraulic Motors
    Travel2 x Variable capacity
    Swing1 x Fixed capacity

  • Drives and Brakes

    Steering controlTwo levers with pedals
    Drive methodFully hydrostatic
    Maximum drawbar pull1700 kg
    Gradeability58 %
    Travel speeds2.3 / 4.3 km/h
    Service brakeHydraulic lock

  • Swing System

    Driven byHydraulic motor
    Service brakeHydraulic lock
    Swing speed8.9 rpm

  • Undercarriage

    Track adjusterGrease
    Number of shoes (each side)35
    Number of carrier rollers (each side)0
    Number of track rollers (each side)3

  • Weights

    Operating weight1,780 kg

  • Coolant & Lubricant capacity

    Fuel tank19 ltr
    Coolant3.1 ltr
    Engine3.3 ltr
    Hydraulic tank15.2 ltr
    DEF tankNone

  • Engine

    ModelKomatsu 3D67E-2
    TypeSwirl Chamber
    Number of Cylinders3
    Piston Displacement0.78 ltr
    Horsepower, Gross - SAE J199511.2 kW
    Horsepower, Net - ISO 9249 / SAE J134911.2 kW
    Rated RPM2600
    Fan drive methodMechanical
    Emissions certificationEPA Tier 3

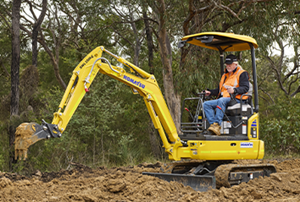

PC18MR-3 Excavators

Our smallest excavator is a tough and productive machine in a small package, perfect for rental fleets, owner-operators, builders, plumbers, electricians and other tradies – or anyone who needs to work in confined conditions. It incorporates features of bigger Komatsu excavators, with key components designed and manufactured by Komatsu to work together in an integrated package. And it’s standard with our Komtrax remote monitoring and location system, backed by our Australia-wide service and support network.



Komatsu PC18MR-3 Testimonial


  • 11.2 kW / 15 HP
    ENGINE POWER
  • 1,780 kg
    OPERATING WEIGHT
  • 0.044 m³
    BUCKET CAPACITY

PC18MR-3 Excavators

Current Offers

Expandable Undercarriage

The PC18MR-3 can pass through narrow space due to narrow width and undercarriage can be expanded for good stability during excavation.

Tight Tail Swing

Operator is able to focus on the work in front of them and worry less about a rear swing impact, even in confined areas with only an 80mm 3" projection over the tracks.

Closed-centre Load Sensing System

When two or more actuators are operated simultaneously, the pressure-compensated CLSS system ensures each actuator works according to its control input, regardless of the size of the load. This gives the operator precise control at all times.
