SPECIFICATIONS

EXPAND ALL COLLAPSE ALL

  • Engine

    ModelKomatsu SAAD114E-6
    Type4-cycle, water-cooled, direct injection
    AspirationTurbocharged, after-cooled, cooled EGR
    Number of Cylinders6
    bore x stroke114 mm x 144.5 mm
    Horsepower, Gross - SAE J1995164 kW / 220 HP
    Horsepower, Net - ISO 9249 / SAE J1349162 kW / 217 HP
    Rated RPM1950
    Piston displacement8.85 ltr
    Fan drive typeHydraulic
    Lubrication systemGear pump
    Emissions certificationEPA Tier 4

  • Hydraulic System

    TypeClosed-centre load sensing system
    Maximum pump flow248 ltr/min
    Relief valve setting - For implement285 kg/cm2
    Hydraulic cylinderNo. of cylinders x bore
    Blade lift2 x 85-90 mm
    Blade tilt125-150  mm
    Blade angle2 x 110 mm
    Ripper lift125 mm
    Pitch angle38o- 52o

  • Torqflow transmission

    Komatsu TORQFLOW transmission consists of a water-cooled, 3-element, 1-stage, 2-phase, torque converter with lockup clutch, and a planetary gear, multiple-disc clutch transmission which is electronically controlled, hydraulically actuated and force lubricated for optimum heat dissipation. Shift lock lever and neutral safety switch.

    Travel speeds
    Forward0 - 11.3 km/h
    Reverse0 - 13.6 km/h

  • Final drives

    Double reduction final drive of spur and planetary gear sets to increase tractive effort and reduce gear tooth stresses for long final drive life. Segmented sprocket teeth are bolt-on for easy replacement.

  • Steering system

    TypeHydrostatic Steering system
    Steering controlPCCS-lever
    Minimum turning radius1.9 - 2.1 m

  • Undercarriage

    SuspensionOscillating equaliser bar and forward pivot shaft
    Track roller frameMonocoque, large section, durable construction
    TracksPLUS link assebmly
    Number of track rollers (each side)7
    Number of shoes (each side)42
    Number of carrier rollers2
    Shoe typeSingle grouser
    Shoe width610 - 760 mm

  • Coolant & Lubricant capacity

    Coolant49 ltr
    Fuel tank415 ltr
    Engine oil30.5 ltr
    Final drive (each side)16.5-22 ltr
    Torque converter, transmission, bevel gear, and steering system48 ltr
    DEF tank23.5 ltr

  • Weights

    Operating weight20,740 - 24,293 kg

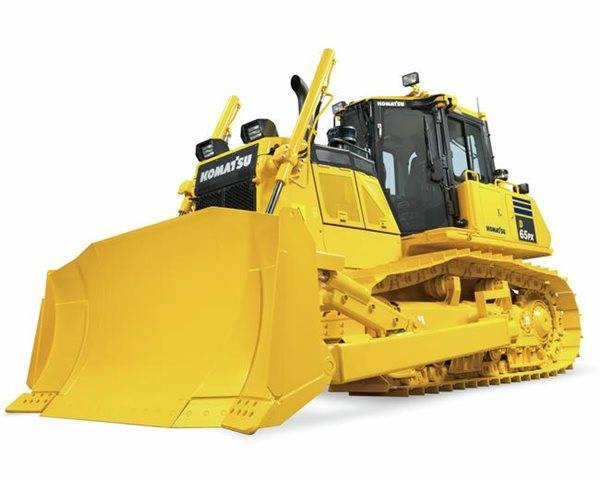

D65EXi/PXi-18 Dozers

The D65EXi/PXi-18 bulldozer incorporates Komatsu’s unique intelligent Machine Control (iMC) technology, allowing it to carry out both bulk and final trim dozing in fully automatic mode from start to finish, delivering final grade performance and accuracy.

Available in both standard and low-ground-pressure versions, it is powered by a new technology Komatsu engine. With lock-up torque converter and excellent vision, the D65EXi/PXi-18 is a reliable and versatile dozer. And it comes standard with, Komtrax, Komatsu's wireless fleet monitoring system ITC and Intelligent machine control reporting, backed by our Australia-wide service and support network.

Intelligent Machine Control:
•3D GNSS system •Integrated & standard factory installed • Automated operation from rough dozing to finish grade • Highly increased efficiency • Stable position reading better fixture greater accuracy •Load sensing hydraulics •Stroke sensing cylinders •Able to communicate with any OEM UHF / UHF Digital II base stations •Network RTK Ready

Customer Testimonial 1
Customer Testimonial 2

For new and used D65 iMC dozers for sale request a quote below.



Komatsu Tier 4 engine KDPF regeneration video on dozer page

Tier 4 Engine KDPF Regeneration video
  • 162 kW / 217 HP
    ENGINE POWER
  • 23,373 kg
    OPERATING WEIGHT
  • 5.6 m³
    BLADE CAPACITY

D65EXi/PXi-18 Dozers

Intelligent Performance

The Komatsu D65EXi/PXi-18 Intelligent Machine Control dozer offers an outstanding improvement in productivity with its innovative and fully automatic blade control function that performs both rough dozing and finish grading in automatic mode.

Current Offers

Improved Machine Efficiency

The new D65EXi/PXi-18 has achieved both high levels of productivity and fuel economy with the SIGMADOZER blade, automatic transmission with lockup torque converter and new Tier 4 Final engine. From these 3 key features the bulldozer significantly improves  fuel efficiency compared with our conventional models

Unrivaled Blade Visibility

The D65EXi/PXi-18 has a strong integrated ROPS cab. High rigidity and superb sealing performance sharply reduce noise and vibration for the operator and helps prevent dust from entering the cab. This provides the operator a comfortable working environment. In addition, side visibility is increased because additional extrenal ROPS structure and posts are not required.

Comfortable Working Space

The D65EXi/PXi-18's cab mount uses a cab damper system and provides shock and vibration absorption conventional mounting systems cannot match. The Silicon-oil-filled cab damper mount helps to isolate the cab from the machine body, suppressing vibration and providing a quiet, comfortable operating environment.
