SPECIFICATIONS

EXPAND ALL COLLAPSE ALL
  • Engine

    Model

    Komatsu SAA4D104E-1

    Horsepower, Net - EEC 80/1269 (kW)

    74

    Engine Displacement (litre)

    4.485

    Number of cylinders

    4

  • Operation Weight

    Operating weight - (kg)

    Standard: 8070

  • Backhoe

    S/shift or C/mount

    Side-shift

    Dig depth (mm)

    6465

    Reach @ ground level (mm)

    7175

    Load height (mm)

    5148

    Bucket widths, min-max (mm)

    300-1200

    Bucket breakout force (kgf)

    6100

    Arm breakout force (kgf)

    4000

    Slew system

    Twin ram

    Related Information

    Komatsu Genuine Attachments including a dynamic cast quick hitch and integrated bucket solutions

  • Loader

    Bucket capacity (m3)

    1.0

    Dump height (mm)

    2720

    Bucket width (mm)

    2320

    Bucket breakout force (kgf)

    6500

  • Hydraulic System

    Pump type

    Variable displacement piston

    Pump flow (litre/min)

    165

    Relief valve pressure (bar)

    250

    ​Related Information

    ​Efficient and powerful operation is obtained from the Syncro System CLSS system

  • Transmission

    Transmission type

    Full Power Shift

    Drive

    2WD / 4WD

    Number of speeds, Fwd / Rev

    4 / 4

    Maximum speed, Fwd / Rev (km/h)

    40.0

    Ride Control (Standard/Optional/NA)

    Standard

  • Dimensions

    Travel length (mm)

    5895

    Travel height (mm)

    3780

    Width (mm)

    2320

  • Service Information

    Fuel tank (litre)

    150

  • Communications System

    KOMTRAX Satellite tracking

    Yes

  • Standard Fitment

    ENGINE & RELATED ITEMS

    - Komatsu SAA4D104E-1 engine.
    - Air cleaner, dual element with precleaner.
    - Full compliance with EU Stage IIIA and EPA Tier III exhaust emission regulations.
    - Side by side cooling cores, (engine, transmission, hydraulic, intercooler).

    ELECTRICAL SYSTEM

    - Alternator, 12 Volt, 120 Ampere.
    - Battery, standard, 1 x 12 Volt, 155 Ah.
    - Starter motor, 12 Volt, 3.0 kW.

    POWERTRAIN

    - Electronically controlled, four wheel drive, Full Power Shift transmission, 4 speed.
    - Heavy duty axles.
    - Oil immersed disc brakes, individual rear or total integral braking.

    TYRES

    - Front - 12.5/80 R18 - 10 PR.
    - Rear - 16.9 x 28 - 12 PR.

    HYDRAULICS & CONTROLS

    - SyncroSystem, Closed Load Sensing System (CLSS)
    - Variable displacement axial piston pump and Load Independent Flow Divider.
    - Proportional Pressure Controls (PPC) lock switch.
    - Load Stabiliser System (LSS)
    - Electro-hydraulic differential lock.
    - Loader
    - Proportional Pressure Controls (PPC) servo control type.
    - Speed up function, self levelling and transmission kickdown.
    - Bucket positioner, automatic (return to dig).
    - Boom positioner / kickout.
    - Backhoe (Sideshift arrangement)
    - Proportional Pressure Controls (PPC) servo control type.
    - Proportional Pressure Controls (PPC) servo control for stabilisers.
    - Hydraulic sideshift.
    - Power and Economy work mode selection.
    - Electro-hydraulic boom lock and slide frame release lock.
    - Swing transport lock and hydraulic cushions.
    - Burst valve protection (boom and arm).
    - Hammer piping (one way flow).
    - Quick hitch piping, factory fitted.

    OPERATOR ENVIRONMENT

    - Large wide view ROPS / FOPS ergonomic cabin.
    - Two door cabin with fully opening rear window.
    - Steering wheel, adjustable.
    - Air suspension seat, fabric covered.
    - Seat belt, 78mm, retractable.
    - Safe position seat sensor.
    - Easy to view gauge and switch clusters.
    - Air conditioner.
    - Rear view mirrors, inside and out.
    - Floor mat.
    - Tinted windows
    - AM/FM/CD/MP3 radio, domestic frequency range.

    OTHER STANDARD EQUIPMENT

    - Back-up alarm.
    - Engine shut-off system, electric.
    - Painting, Komatsu standard colouring.
    - Marks and plates, English (Aus & NZ).
    - Battery isolation switch.
    - Cap lock and cover lock.
    - Internal storage.
    - Dual LED beacons, rotating type with guards.
    - Komatsu Machine Tracking System, (KOMTRAX).
    - Fire extinguisher.

    WORK EQUIPMENT

    - Loader
    - Multi Purpose bucket.
    - Backhoe
    - Boom, "S" shape type.
    - Arm, telescopic type.
    - Bucket solutions are available on request.

    MATERIALS

    - Operation and maintenance manual.
    - Parts book.

    WARRANTY

    - Premium warranty 36 months / 6,000 hours.
    "Specification on either backhoe variant unit is subject to change without notice"

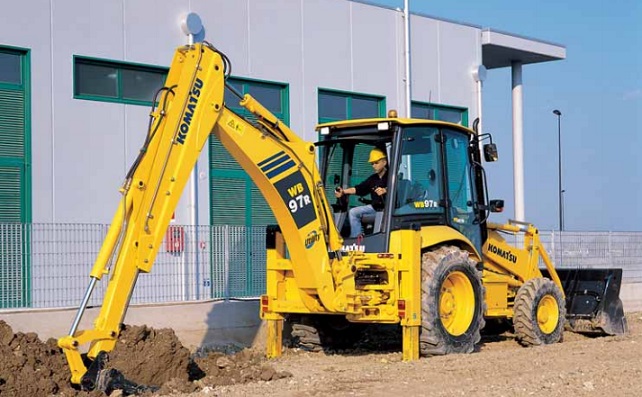

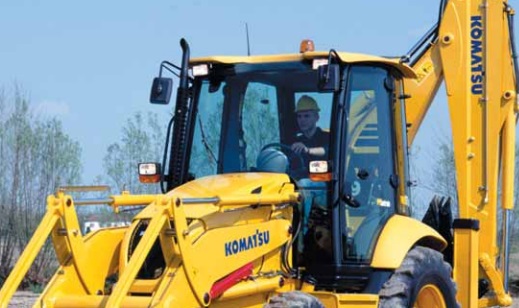

WB97R-5 Backhoes

With a backhoe dig depth to 6.8 m with extended dipper and a 1.03 m3 loader bucket capacity, our WB97R-5 is a productive, versatile machine featuring the same advanced closed-centre hydraulic system as our market-leading excavators. As with all utility-sized machines, key components are designed and manufactured by Komatsu to work together in an integrated package. And it comes standard with our KOMTRAX remote monitoring and location system, backed by our Australia-wide service and support network.

Premium Performance

  • PPC servo-controls standard for the front
  • loader and the backhoe
  • “Full Power Shift” transmission
  • CLSS (Closed Load Sensing System)
  • Variable fl ow piston pump
  • “Power” and “Economy” working modes

Excellent Visibility

  • Wide round glass surfaces
  • Sloped and narrow engine bonnet
  • Upper front window for full visibility of the front bucket
  • Total control of the surrounding area

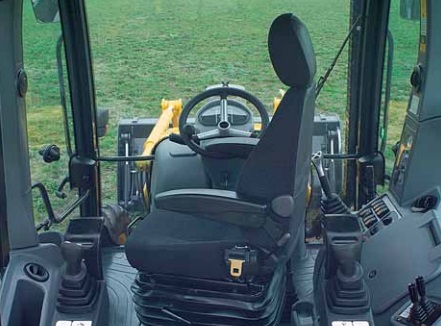

New Seat Range

The air suspended Deluxe seat or the more traditional mechanical suspended seat both guarantee the best interface between the machine and the operator. The air suspended seat also offers adjustable armrests, headrests and lumbar regulation as standard.
